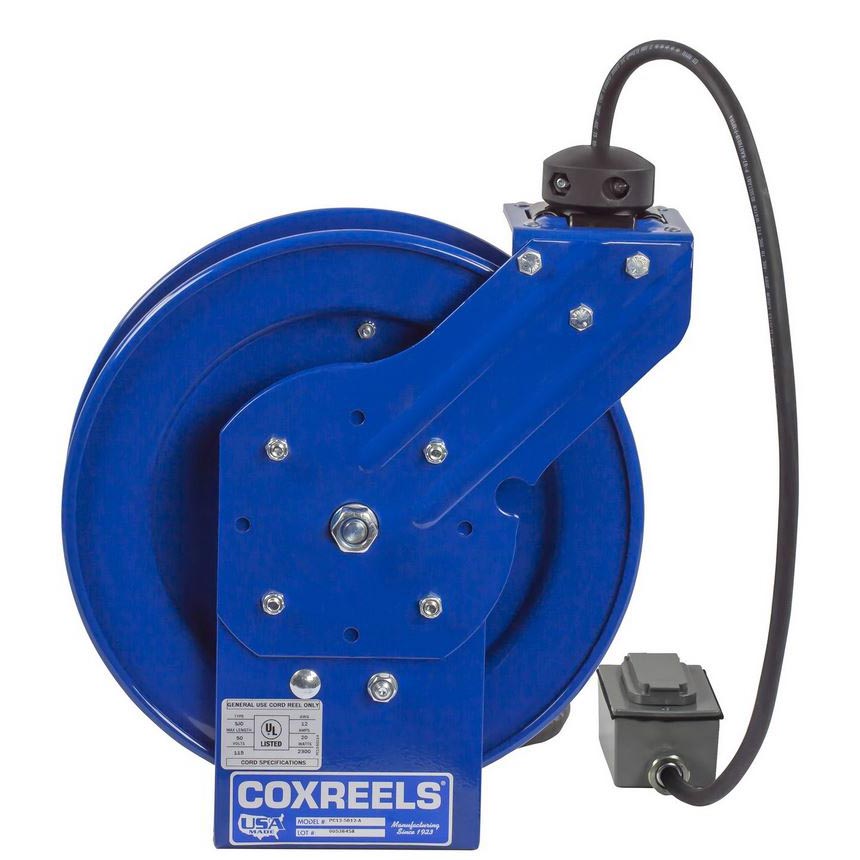

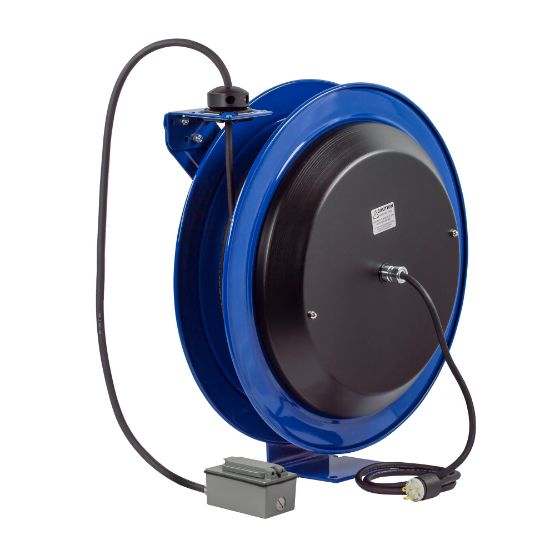

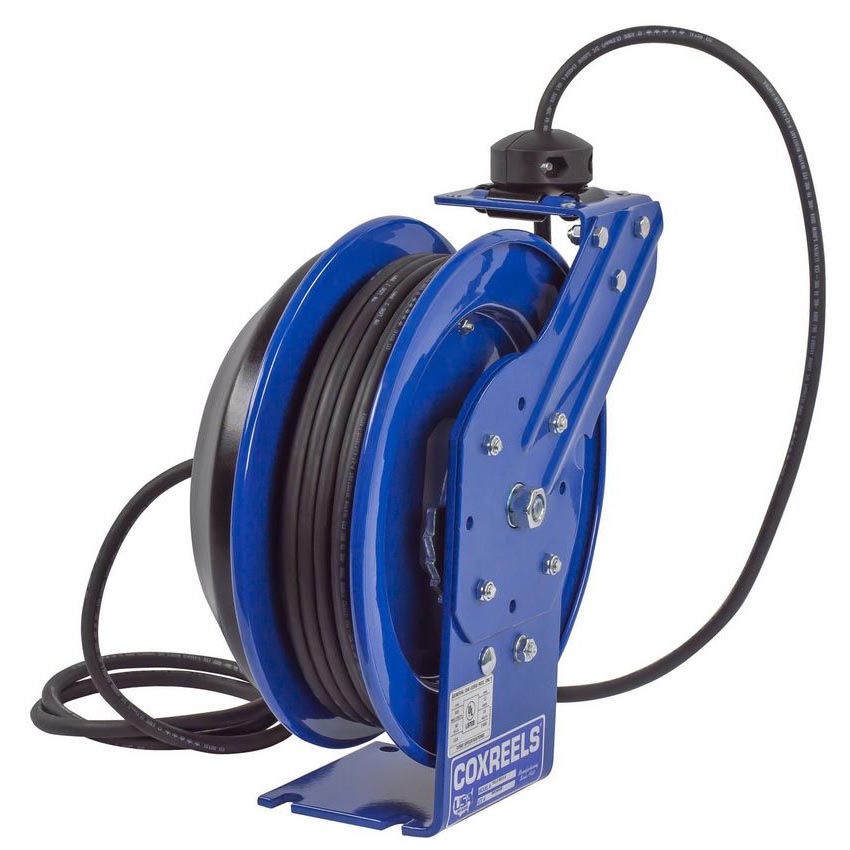

COXREELS PC13-5012-F Power Cord Reel, 50' x 12 AWG, 115V, Spring Rewind, with Duplex GFCI Receptacle

COXREELS PC13-5012-F Spring Rewind Power Cord Reel, 50' x 12 AWG, 20 Amps, 115V, Duplex GFCI Industrial Receptacle

***MADE IN THE USA***

The COXREELS PC13-5012-F is a 50' x 12 AWG extension cord reel with spring rewind. The PC13 Series spring driven “Power Cord” reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH Series, the PC Series are designed for long-lasting, trouble-free performance even under the most demanding conditions. This is one of the highest quality electric power cord reels with a spring driven rewind available on the market. The PC13-5012-F is a 50' retractable electric cord reel that is capable of handling 20 amps and includes a 12 gauge cord. This model includes a duplex GFCI industrial receptacle

Slip Ring:

• External heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
• Electrical current runs through a 25AMP / 300V rated slip ring
• Includes 5' lead cable & grounding plug

Design and Structure:

• Single pedestal cord reel with space saving design facilitates workplace organization
• Guide arm adjusts to wall, floor & overhead positions
• Solid one piece, heavy gauge 1⁄4" steel base & support post for maximum stability
• 1" solid steel axle & lubricated precision bearings for smooth rotation

Retraction:

• Enclosed factory tuned & matched cartridge-style spring motor
• Non-corrosive stainless steel spring, pawl & zinc plated ratchet
• Multi-position lock ratchet mechanism secures cord at desired length

Signature Features

• Professional grade heavy duty steel construction
• Durable proprietary CPC™ powder coat process
• Rolled edges & ribbed discs provide strength & safety
• Leading 2-year manufacturer's limited warranty
• Made in the U.S.A. - Sold & Supported Worldwide

Possible Fields of Application:

• Power Tools
• Light Source
• General Industrial
• Bench Mount
• Manufacturing Plants & Facilities
• Workshops
• Automotive & Fleet Service Centers
• Service / Mechanic / Utility Vehicles

PC13-5012-F Specifications

• Electric Cord Included? YES
• Cord Length - 50'
• Number of outlets: 2
• GFCI?: Yes
• Voltage - 115v/1/60hz
• Cord AWG / INDEX - 12 AWG / 3
• Maximum Amp Draw - 20 Amps
• Dimensions - 8.5"(W) 14.88"(H) 13.5"(L)
• Weight - 42 lbs
