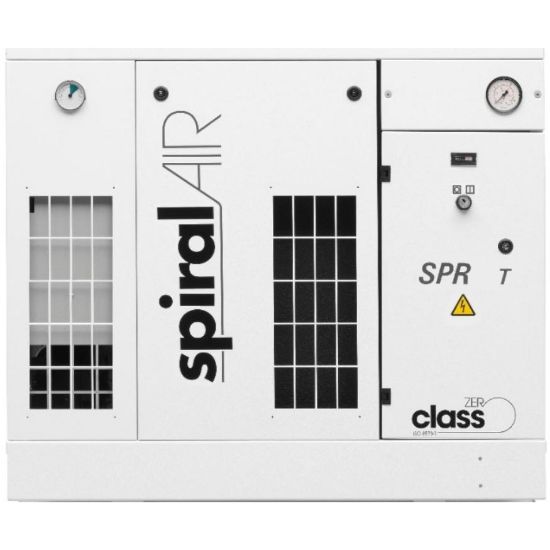

The Chicago Pneumatic "SpiralAir" SPR2T-141 is a 1.5hp oil free scroll air compressor with an integrated refrigerated air dryer built into the cabinet. The SPR2 T is designed to run at a maximum pressure of 141psi. This model will displace 4.0cfm @ 141psi and runs on 230v/1/60hz power. The integrated dryer will help to reduce and eliminate water and rust from accumulating in the tank, and also prevents water from flowing through the pipes and into the finished product.
With an extremely low noise level of 52dBA, the SpiralAir compressors will be able to sit anywhere in your facility without causing distractions. The SPR2 includes a sound reducing enclosure with dust protection enclosure. This allows for the compressed air system to run at one of the quietest noise levels on the market. The low noise allow installation at the point of use while the small footprint maximizes floor space. Since the SPR2-141 is a basemount compressor, it is designed to be tied into a separate air receiver.
The Chicago Pneumatic SpiralAir SPR2 enclosed scroll air compressor is designed to provide clean and dry air for industrial applications where the quality of the compressed air is critical. Air compression is achieved by the interaction of a fixed and orbiting scroll. Air at inlet pressure enters the compression chamber at the exterior side of the scroll element. Once air is drawn in, the orbiting scroll seals off the inlet port. As the scroll continues to orbit, the air is progressively compressed into an increasingly smaller ‘pocket’. A continuous flow of compressed air leaves the scroll element through a discharge port in the center of the fixed scroll. This process is continuously repeated, resulting in the delivery of pulse-free compressed air.
Industries such as pharmaceuticals, food and beverage, electronics and textiles cannot tolerate any chance of oil contamination in their processes. Therefore, for compressed air applications within these industries, a technology excluding any risk of contamination is an absolute requirement. Their point of reference is the ISO 8573-1 (2010) certification, in which Class Zero represents the best air quality possible. It is the only way to ensure oil-free air for your critical processes and with it peace of mind: Outstanding reliability, low maintenance and operating costs make oil-free compressors a sound investment.
The internal factory part number for this compressor is 8153613388.
100% Pure Oil Free Compressed Air
As there is no metal-to-metal contact between the compression scrolls, there is no need for oil lubrication in the compression chamber. Therefore, the scroll compression principle guarantees high-quality, oil-free air. As a result, the SPR compressor is oil-free in every way.
Integrated Air Dryer
A plug and play solution for removing moisture. No separate air dryer or additional plumbing is required. The air dryer is pre installed and plumbed inside of the compressor cabinet for water and moisture removal down to a 38F dewpoint.
The scroll compressors, standard equipped with IE3 Premium efficiency motors, are suited for sensitive applications which require flexibility and energy efficiency. Unloaded power consumption is eliminated thanks to the simple start/stop control. Advanced scroll technology guarantees an optimal free air delivery and low duty cycle applications.
Extremely Low Noise Level
The slow speed of the scroll compression elements ensures that the SPR scroll compressors are extremely quiet. Sound levels are as low as 52dB(a), making the SPR the perfect choice for your sensitive working environment.
Simplicity and Reliability
The SPR scroll compressor is simple and reliable. The compressor has a minimal number of moving parts, ensuring a long operating life with limited service interventions. With their integrated design, Chicago Pneumatic's SPR scroll compressors have a minimal footprint and offer easy serviceability.
Features and Benefits - Chicago Pneumatic SpiralAir SPR2T-141
SPR2 T 112psi
