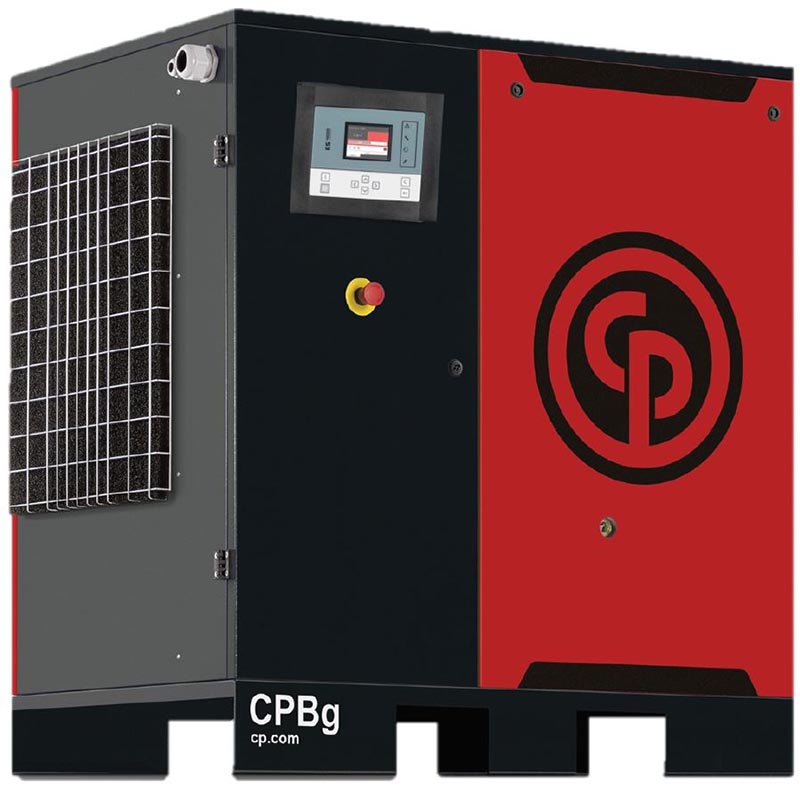

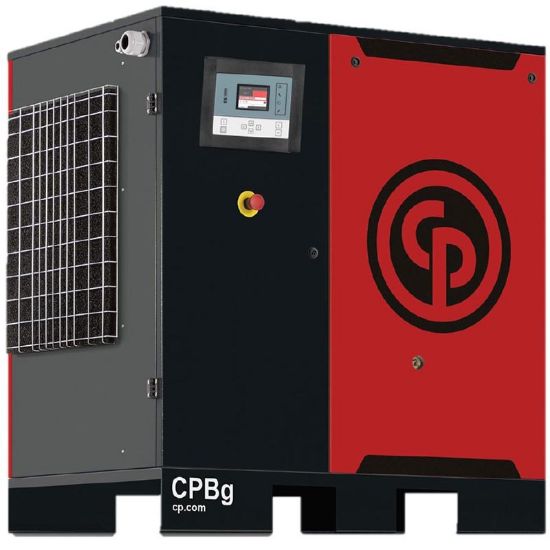

Chicago Pneumatic CPBg 34D BM 35hp Rotary Screw Air Compressor with Air Dryer, 138.4cfm, 125psi
The Chicago Pneumatic CPBg 34D BM is an industrial grade 35hp rotary screw air compressor with integrated refrigerated air dryer. This model is designed to displace up to 138.4cfm @ 125psi and is baseplate mounted without a receiver tank. This tri-voltage model can run on 208v, 230v or 460v 3 phase power. The internal Chicago Pneumatic part number for this air compressor is 4152030653. This specific 35hp rotary screw compressor is a base mount model and can be paired with a separate receiver tank or refrigerated air dryer. The integrated refrigerated air dryer is pre-plumbed and will remove moisture from the compressed air before sending it downstream. The CPBg compressor is designed for 100% continuous duty and can support the most demanding air requirements. This means it can run 100% loaded 24 hours a day.
The motor is a tri voltage totally enclosed fan cooled (TEFC) motor. This makes for extremely simple installations for buildings that have a three phase power supply. The compressor is pre-shipped wired 230/3/60hz power, but can be easily changed over to 460v or 208v three phase. Since the motor is totally enclosed, this results in less debris being pulled into the bearings and windings for a longer life. Note the air dryer will require a separate 115v power installation.
Quality Air Package Included – The CPBG 34D includes an integrated refrigerated air dryer pre-installed and plumbed with the compressor package. This eliminates the need for a separate air dryer saving on installation cost and floorspace.
Low Noise Levels - The new element (airend) and gearbox combined with the deep sound insulation result in very low sound levels
Easy & Fast Maintenance - Easy maintenance and very low pressure drop thanks to the new oil separation method, large hinged doors and removable panels. Oil sight glass hole is located in panel for easy view of oil level.

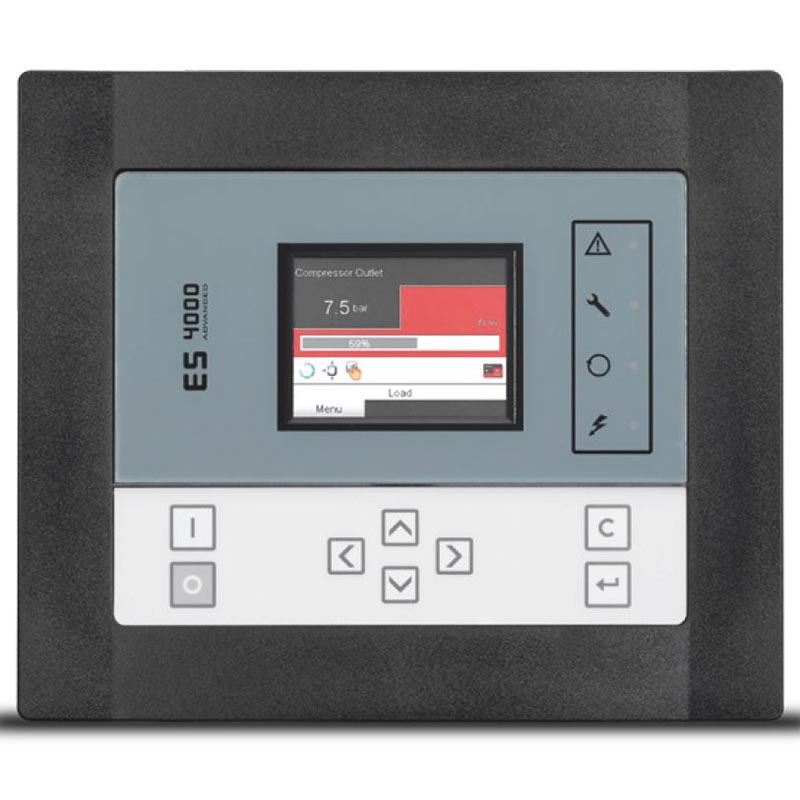

Smart Monitoring & Control - The unique ES4000 Advanced control unit is specially programmed for energy savings
Intelligent Savings - The CPBg 34D BM air compressor is managed by the ES4000 Advanced controller. This electronic control unit is programmed for energy saving operation with intelligent shutdown. The ES4000 Advanced control can be programmed to shutdown in accordance with your plant air demand and reduce long periods of unloaded operation, reducing power cost. The ES4000 Advanced control feature can save a customer hundreds of dollars per year.
Features and Benefits – CPBG 34D BM
CPBG 34 TM
CPBg 34D BM

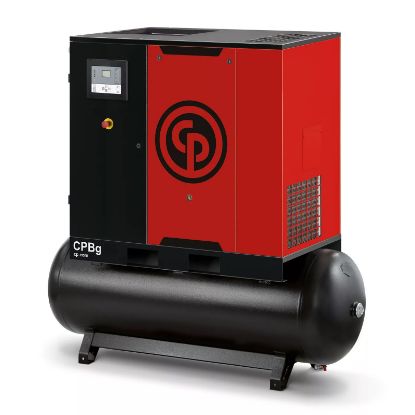

CPBG 34D TM
