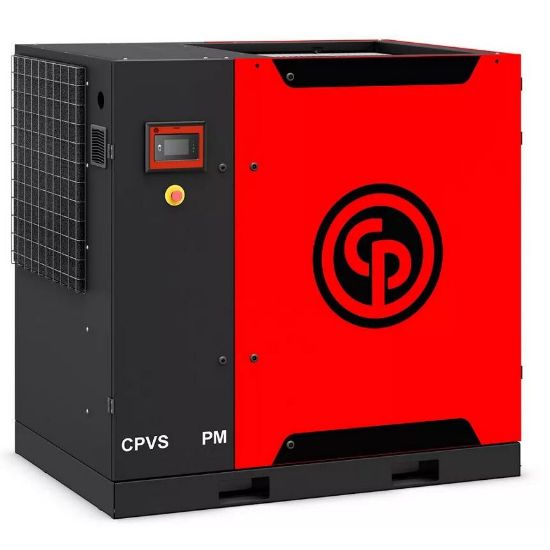

Chicago Pneumatic 75hp Variable Speed Drive Compressor, Direct Drive, Interior Permanent Magnet Motor, 61-390 cfm, CPVS 75 PM

SKU: CPVS 75 PM
Part #: CPVS 75 PM
Old price: $66,465.00
$49,849.00
Call to order 866-203-2944

Chicago Pneumatic CPVS 75 PM 75hp Variable Speed Drive Compressor with Interior Permanent Magnet Motor, 61-390CFM

The CPVS PM range combines Chicago Pneumatic's Imperium variable speed technology with their new and highly efficient drive train with iPM motor technology and evolved the energy efficiency of variable speed compressors to a new level, resulting in energy savings of up to 45%. Since the CPVS75 PM is a varible speed drive energy saving rotary screw compressor, it will match it's output based on your CFM demand, therefore saving you on energy costs.

This CPVS75 PM is a 75hp varible speed drive compressor. It is rated to displace up to 390cfm and will regulate its output between 61-390 cfm depending on your plants requirement. You can easily adjust the pressure via the microprocessor controller.

The compressor has a ES4000T touch advanced microprocessor controller pre-installed for ease of use. The controller stops the unit whenever possible to reduce the power consumption and restarts it automatically when the net pressure decreases. The controller maintains the net pressure between programmable limits by automatically adapting the motor speed.

Continuous investment in product development has resulted in Chicago Pneumatics most innovative and energy efficient VSD compressor to date. A groundbreaking drive train coupled with our Imperium inverter has pushed energy effi ciency to the next level, bringing energy savings of up to 45%. Designed with the customer in mind, the CPVS PM range delivers premium performance at a minimal energy cost. With the CPVS PM, reliable productivity becomes a given. Maintenance-free components enable higher uptime and consumables with a long lifetime ensure low total cost of ownership. Last but not least, this range offers you peace of mind, packaged in a proven canopy design with already thousands of installations around the globe.

Compressed air drives your processes and with it, the operational efficiency and performance of your company. With this principle in mind, Chicago Pneumatic has designed the CPVS PM, a range of variablespeed, oil-injected screw compressors with iPM motor technology to offer your business a compressed air solution that adds value and saves you money at the same time.

The internal factory item number for the CPVS 75 PM is 8158053580.

Improved energy efficiency saves you money

  • In-house designed iPM motor with IE4 Super Premium Efficiency
  • New generation in-house designed screw elements with improved efficiency
  • Integrated direct drive transmission for minimal losses.
  • Smart inlet valve optimizes the inlet fl ow and improves efficiency

Maintenance-free design minimizes downtime and improves your productivity

  • No regreaseing of the motor bearing needed.
  • Coupling-free direct drive design, no maintenance needed.
  • Smart inlet valve, no maintenance needed.

Increased reliability extends lifetime

  • iPM motor rated IP66, premium protection against dust and water ingress
  • Globally renowned screw elements, proven in thousands of installations
  • Optimal cooling at all speeds and conditions thanks to oil-cooling principle of the iPM motor.

Standard Features of the CPVS 75 PM

  • ES4000 Touch Microprocessor Controller
  • Radial cooling fan for high efficiency and load noise
  • Imperium Inverter - designed specifically for use with compressed air systems
  • IPM Motor with IE4 efficiency
  • Low sound and dust protection enclosure
  • Independent oil and air aftercoolers
  • Remote monitoring and service updates
Products specifications
Duty Cycle100% Continuous Duty
Voltage Frequency60Hz
PhaseThree
Voltage460/3/60hz
CFM @ 103 PSI390
Connection Size2" NPT
Sound Level71dBA
ConfigurationBasemount (tankless)
CFM Range100+
Drive StyleVariable Speed Drive / VSD
Horse Power75
Max Pressure (PSI)189
PhaseThree
Dimensions69" x 42" x 65"
Weight1940 lbs
