Chicago Pneumatic 20hp Variable Speed Drive VSD Rotary Screw Air Compressor, Direct Drive, 28-102 cfm, 132 Gallon Tank Mounted, CPVSd 21 TM

Part #: CPVSd 21 TM
Free shipping (Excludes Hawaii & Alaska)
Ship to
Shipping Method
Estimated Delivery
No shipping options

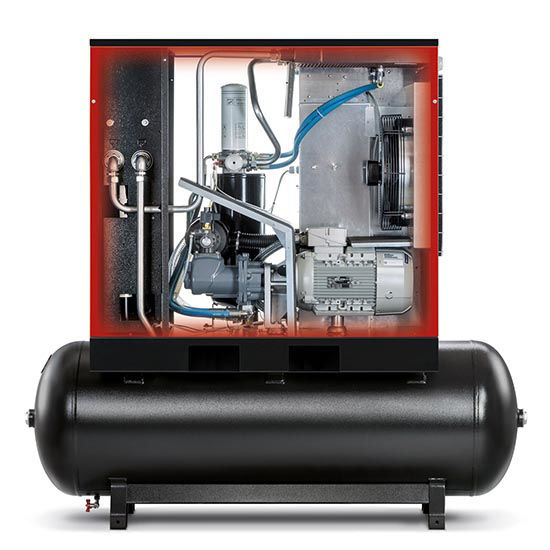

Chicago Pneumatic 20hp Variable Speed Drive Rotary Screw Air Compressor Mounted on 132 Gallon Receiver, 28-101 CFM - CPVSd 21 TM

The Chicago Pneumatic CPVSd 21 TM variable speed direct drive compressor (CPVSd) allows you to save operating costs when your application does not require the compressor's full capacity. The ES4000 microprocessor controller automatically maintains your desired system pressure and provides only the air that your system requires on a smooth consistent basis. Variable speed technology coupled with a direct drive transmission results in energy savings of up to 30%. The CPVSd 20hp compressor can function as a stand-alone machine or networked to a base-load compressor where it can function as a trim machine.

This CPVSd 21 TM is a 20hp varible speed drive compressor. It is rated to displace up to 101 cfm and will regulate its output between 28-101 cfm depending on your plants requirement and pressure setpoint. You can easily adjust the pressure via the microprocessor controller.

The CPVSd 21 series is managed by the ES4000 Advanced, an electronic control unit programmed for energy saving operation with intelligent shutdown. The ES4000 Advanced control can be programmed to shutdown in accordance with your plant air demand and reduce long periods of unloaded operation, reducing power cost. The ES4000 Advanced control feature can save a customer thousands of dollars per year.

Compressed air drives your processes and with it, the operational efficiency and performance of your company. With this principle in mind, Chicago Pneumatic has designed the CPVSd, a range of variable speed, oil-injected screw compressors with IP55 TEFC motor technology to offer your business a compressed air solution that adds value and saves you money at the same time.

The internal factory part number for this compressor is 4152032708. This model comes mounted on a 132 gallon ASME horizontal air receiver tank with a safety valve and tank drain. This model runs at a very low noise level of only 68 dBA.

Savings Through Energy Features:
Energy cost represent about 70% of the total operating cost of your compressor over a five (5) year period. That is why reducing the operating cost of a compressed air solution should be a major focus. The CPVSd 21 Variable frequency driven compressors can “cut” your energy bill by up to 30%.

Standard Features of the CPVSd 21 TM

  • Low sound enclosure, as quiet as 68 dB withoptional silencing baffle
  • Direct drive transmission for energy savings andreduced maintenance cost
  • 73-182 psig pressure range
  • ES4000 microprocessor controller
  • 460V / 3 phase main drive power
  • IP55 TEFC High Frequency Motors designed forvariable speed use
  • Heavy duty, 2-stage pre-filtration
  • Shipped with synthetic oil for reduced service costs
  • Easily accessible integrated inverter drives
  • Stable pressure due to Variable Speed drive
  • ASME 132 Gallon Air Receiver


Products specifications
Duty Cycle 100% Continuous Duty
Voltage Frequency 60Hz
Phase Three, Three
Voltage 460/3/60hz
Connection Size 1" NPT
Sound Level 68dBA
Configuration Horizontal
CFM Range 100-149
Drive Style Variable Speed Drive / VSD
CFM @ 100 PSI 101.6
Tank Size 132 Gallons
Horse Power 20
Max Pressure (PSI) 175
Dimensions 77"L x 33"W x 73"H
Weight 1113 lbs
