Graco Ultra Max II 490/495/595 PC Pro Hi-Boy Parts Breakdown

Also See

Here is a parts breakdown list of replacement Graco Ultra Max II 490/495/595 PC Pro Hi-Boy airless paint sprayer parts. If you don't see the part you are looking for here you can also search our airless sprayer store or call us and talk to one of our experienced representatives. Graco has been good about carrying parts for their sprayers many years after they are discontinued.

Parts Breakdown Diagrams

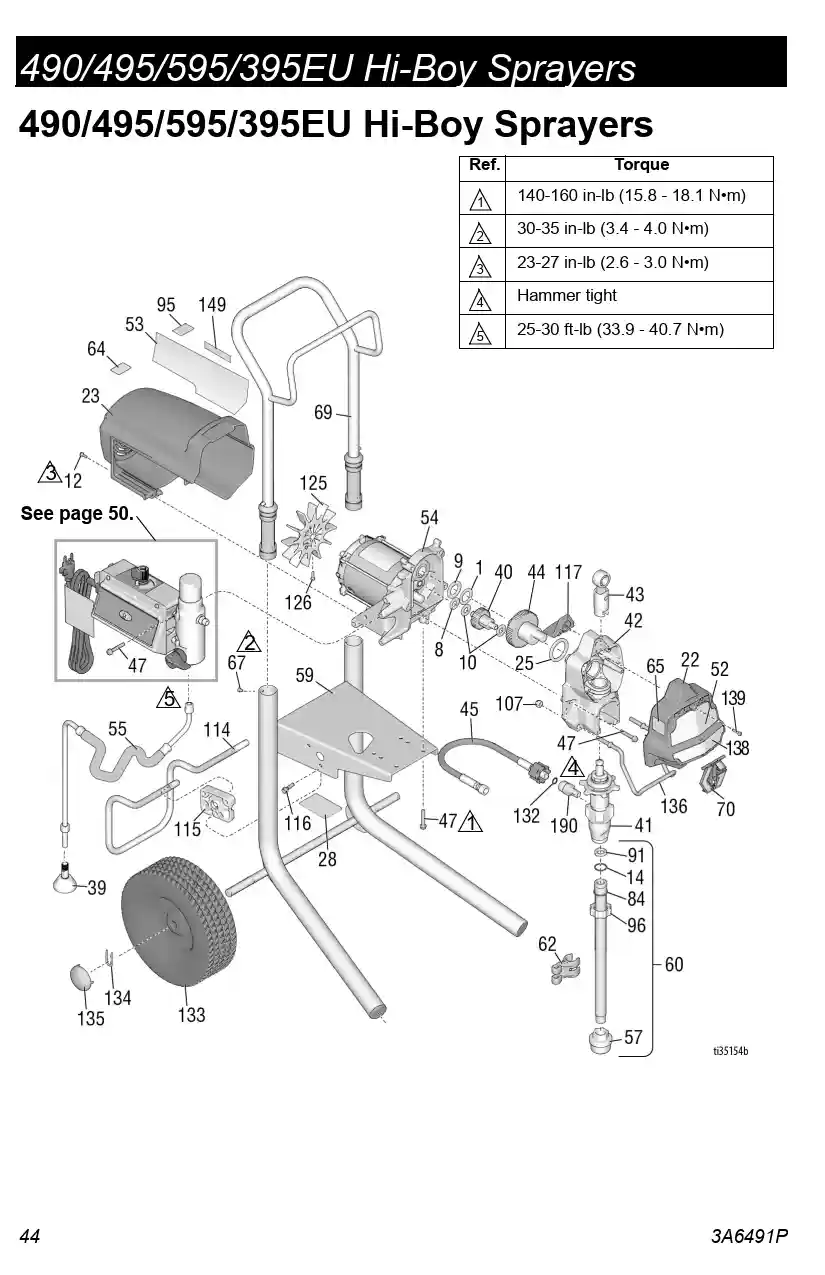

Parts breakdown for Graco Ultra Max II 490/495/595 PC Pro Hi-Boy airless sprayer models 17E854, 17E857, and 17E859

Graco Ultra Max II 490/495/595 PC Pro Hi-Boy Parts List

Ref.Part NumberDescriptionAvailability
206994 Graco Throat Seal Liquid - 8 oz TSLAvailable
1107434BEARING, thrustCall to order
8116073WASHER, thrustCall to order
9116074WASHER, thrustCall to order
10116079BEARING, thrustCall to order
12117501SCREW, mach, hex washer hdCall to order
14 103413 Graco Inlet Tube O-RingAvailable
22 17C541 Graco 17C541 Front Cover PaintedAvailable
23287900SHIELD, motor, painted includes 12Call to order
25180131BEARING, thrustCall to order
33238049FLUID, TSL (not shown)Call to order
39 241920 DeflectorAvailable
40249194GEAR, reducerCall to order
41 17C487 Graco ProConnect Endurance Pump Lower Kit, 390 PC - 595 PC ProAvailable
4117C488PUMP, displacement, PC - Asia/ANZ/Japan/TW/KoreaCall to order
4117C489PUMP, displacement, PC - EuropeCall to order
42 24W817 Graco 24W817 ProConnect Drive Housing Replacement KitAvailable
4324W640ROD, connecting, PCCall to order
4424X020KIT, repair, crankshaft, includes 25 - Models 395EU/490/495Call to order
4424X021KIT, repair, crankshaft, includes 25 - Model 595Call to order
45 24W830 Graco 24W830 Pump Hose KitAvailable
47117493SCREW, mach, hex washer hdCall to order
54287805MOTOR, includes 1, 8, 9, 10, 125, 126 - 490/495/395EUCall to order
54 287807 Graco 287807 595 Motor Repair KitAvailable
55287952HOSE, drain, includes 39Call to order
57276897STRAINER, 7/8-14 UNFCall to order
5917C485FRAME, cart, hiCall to order
60 17C992 Graco 17C992 Suction TubeAvailable
62 276888 Graco 276888 Suction Hose ClipAvailable
6416G596LABEL, warning (Europe)Call to order
67109032SCREW, mach, pan hdCall to order
69287489HANDLE, assembly, hi cartCall to order
70 17C483 Graco 17C483 Pump Rod CoverAvailable
84 15B652 Graco 15B652 Suction Swivel WasherAvailable
91 115099 Graco 115099 Garden Hose Washer Inlet SealAvailable
9515Y118LABEL, made in the USACall to order
96 15E813 Graco 15E813 Replacement Jam NutAvailable
107111040NUT, lock, insert, nylock, 5/16Call to order
11415D281HANGER, stand (on select models)Call to order
11515C982CAM, cart (on select models)Call to order
116114531SCREW, mch, hex (on select models)Call to order
11715G447PLUG, shield, paintedCall to order
122118852SCREW, thrd. forming (on select models, not shown)Call to order
123 287253 Tool Box, UltraMax IIAvailable
125287898KIT, fan, includes 126Call to order
126 115477 Graco 115477 Torx ScrewAvailable
13216H137O-RING, FX-90Call to order
133106062WHEEL. semi pneumaticCall to order
13415B999CLIP, retainingCall to order
135104811CAP, hubCall to order
13617C990HANGER, pail, threadedCall to order
139127914SCREW, mach, slot, hexCall to order
14917P924LABEL, home center - 490/495/595Call to order
14917P925LABEL, home center - 395EUCall to order
